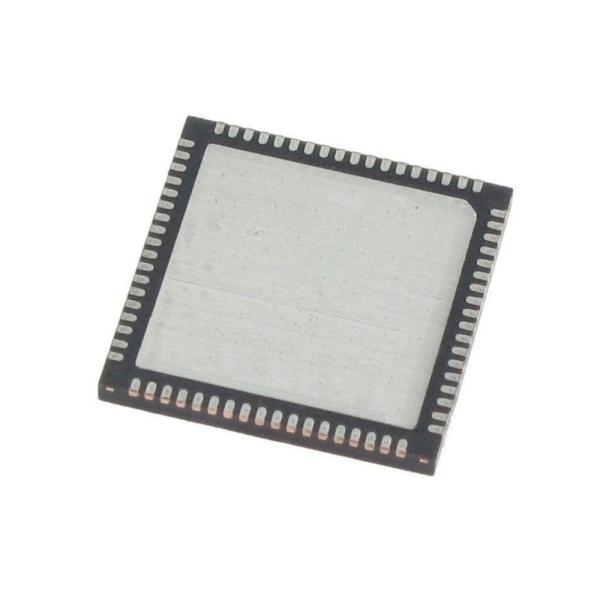

4300LUTs 2.5V 3.3V Programmable Logic ICs LCMXO3D-4300HC-6SG72C

Name: 4300LUTs 25V 33V Programmable Logic ICs LCMXO3D4300HC6SG72C
Brand: Lattice
Price: 1 USD

Brand Name : Lattice

Model Number : LCMXO3D-4300HC-6SG72C

MOQ : 50pcs

Price : Negotiable

Supply Ability : 1000000pcs

Number of Logic Elements : 4300 LE

Number of I/Os : 58 I/O

Mounting Style : SMD/SMT

Package / Case : QFN-72

Brand : Lattice

Distributed RAM : 34 kbit

Embedded Block RAM - EBR : 92 kbit

Contact Now

LCMXO3D-4300HC-6SG72C FPGA - Field Programmable Gate Array Lattice MachXO3D; 4300LUTs 2.5V/3.3V

Lattice Semiconductor MachXO3D™ FPGAs

Lattice Semiconductor MachXO3D™ FPGAs is the next generation of low-density PLDs including enhanced security features and on-chip dual boot flash. The MachXO3D FPGAs enhance secure control applications with hardware Root-of-Trust and dual boot capabilities. The MachXO3D simplifies the implementation of comprehensive, flexible, and robust hardware security throughout the product lifecycle. This customizable approach allows implementation with a wide range of system architectures.

The MachXO3D FPGAs have many robust security features such as detecting cryptographically and preventing a boot from malicious code. The on-device configuration flash enables dual boot, eliminating the need for external memory. The hardened device configuration engine ensures only FPGA configurations from a trusted source can be installed. The MachXO3D devices also provide a flexible, reliable, and secure configuration from on-chip Flash with the encryption and authentication options.

The MachXO3D complies with NIST SP 800 193 Platform Firmware Resiliency (PFR) guidelines. The MachXO3D are available in two performance levels, the ultra-low power (ZC) or the high performance (HC). The MachXO3D PLDs are available in a broad range of advanced halogen-free packages, ranging from the space-saving 10 x 10mm QFN to the 19 x 19mm caBGA. MachXO3D devices support density migration within the same package.

FEATURES

Simplifies implementation of hardware security by integrating Root-of-Trust in your platform’s first on, last off device
Supports security throughout the product lifecycle including device manufacturing and transport, platform manufacturing, installation, operation, and decommissioning
Enables comprehensive protection against a variety of threats by providing data security, equipment security, data authentication, design security, and brand protection

Programmable logic combined with secure dual boot configuration block provides flexibility during design implementation and enables secure updates after equipment deployment
Delivers robust security and pre-verified cryptographic functions compliant with NIST SP 800-193 PFR and CAVP guidelines to protect non-volatile memory, detect malicious code and recover in case of corruption

APPLICATIONS

Secure boot and Root of Trust
Consumer electronics
Compute and storage

Wireless communications
Industrial control systems
Automotive system

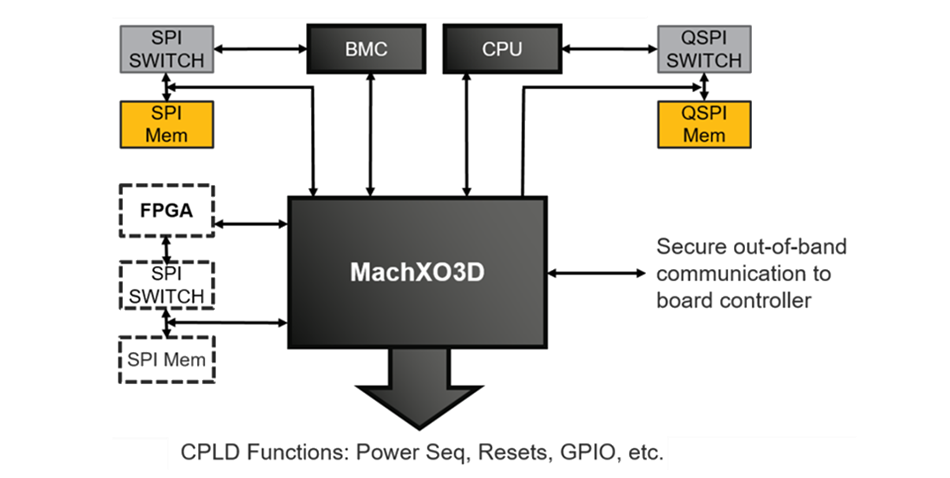

SECURE CONTROL PLD DIAGRAM

4300LUTs 2.5V 3.3V Programmable Logic ICs LCMXO3D-4300HC-6SG72C

• Enhances secure control PLD functionality with dual boot and hardware root-of-trust

CHAIN OF TRUST DIAGRAM

• Hardware Root-of-Trust is the first link in chain of trust that protects entire systems
• Hardened device configuration engine cryptographically authenticates MachXO3D’s configuration image at power-on
• Embedded security block provides cryptographic functions to authenticate other platform firmware at power-on
• With instant-on capability MachXO3D is the first device to boot up securely on the platform and as such is an excellent anchor for Chain of Trust

SECURE SERVER DIAGRAM

• Hardened secure configuration block enables MachXO3D to protect, detect and recover itself from malicious attacks
• FPGA fabric enables parallel processing capability to protect, detect and recover multiple platform firmware at the same time
• Compliant with NIST SP 800 193 Platform Firmware Resiliency (PFR) guidelines
